工模电感

Product Presentation

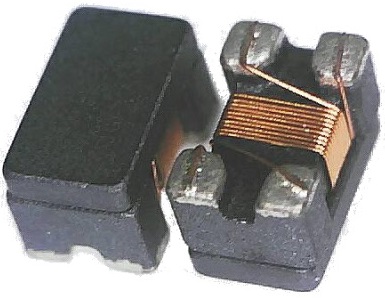

共模濾波器電感 (Common Mode Choke)，簡稱共模電感、巴倫器，或共模扼流圈。採用鐵氧體磁心雙線並繞設計，具有極高的始導磁率，對干擾具有極好的抑制作用；

高飽和磁感應強度，在電流強干擾的場合不易磁化到飽和。卓越的溫度穩定性，性能的變化接近於線性。

有效地抑制高共模噪音及低差模噪聲，穩定高速信號波形，提高電子設備抗幹擾能力，是雜訊抑制最佳對策。

 Photo SeriesDimensions
L×W×T(mm)		 Category Impedance
(Ω)		 Inductance
(μH) 		 Rated Current
(mA) 		 Specification RoHS&REACH Declarations
/ ICP Report
BT2012-Series2.0*1.2*1.2
(0805)		Chip Balun Transformer50/50
75/75		─── ───Send Inquire
CM0806D-Series0.85*0.65*0.45Common Mode Choke35~90───100
CM1210A-Series1.2*1.0*0.9
(0504)		Common Mode Choke67~330───300~200
CM1210C-Series 1.2*1.0*0.9
(0504)		Common Mode Choke For HDMI25~120───300~270
CM1210D-Series 1.2*1.0*0.9
(0504)		Common Mode Choke For USB3.025~90───300~280
CM1608A-Series 1.6*0.8*1.1
(0603)		Common Mode Choke67~220───300~200
CM1608C-Series  1.6*0.8*1.1
(0603)		Common Mode Choke For HDMI

60~90

───

550

CM1608D-Series  1.6*0.8*1.1
(0603)		Common Mode Choke For USB3.060~90───300
CM2012A-Series 2.0*1.2*1.2
(0805)		Common Mode Choke30~900───500~200
CM2012B-Series  2.0*1.2*1.2
(0805)		Common Mode Choke60~370───400-280
 CM2012C-Series  2.0*1.2*1.2
(0805)		Common Mode Choke For HDMI24~160───300
 CM2012D-Series  2.0*1.2*1.2
(0805)		Common Mode Choke For USB3.012~90───420-300
CM2012S-Series 2.0*1.2*1.2
(0805)		Common Mode Choke25~260───420~300
 CM3216A-Series3.2*1.6*1.9
(1206)		Common Mode Choke67~2200───400~200
 PCM3216A-Series3.2*1.6*1.9
(1206) 		Common Mode Choke Coil For Power Lines37~1100───1000~500
 PCM3225A-Series 3.2*2.5*1.9/2.2
(1210)		Common Mode Choke Coil For Power Lines80~1000───2000~1200
 PCM4532A-Series4.5*3.2*2.8
(1812)		Common Mode Choke Coil For Power Lines80~1000───3000~1000
 PCN5045A-Series 5.0*4.5*2.5Common Mode Choke Coil For Power Lines100~1400───6000~1500
 TCM3225-Series-3P3.2*2.5*1.8 Common Mode Choke600~2200───300~200
 UCM1210E-900S1.2*1.0*1.2 Common Mode Choke For USB3.190───280
UCM2012E-900S2.0*1.2*1.3 Common Mode Choke For USB3.190───500
 RYCM7060F-Series7.0*6.0*3.8SMD Power Common Mode Choke100~1300───9.0~2.5
 RYCM9070F-Series9.0*7.0*4.8SMD Power Common Mode Choke300~3000───6.0~3.0
 RYCM1211F-Series12.0*12.5*10.8SMD Power Common Mode Choke80~2700───10.0~1.5
 RYCM0905U-Series9.2*6.0*5.0SMD Power Common Mode Choke───0.33~106.8~1.4
 RYCM0905T-Series9.8*8.6*5.3SMD Power Common Mode Choke───0.47~1010~2.4
